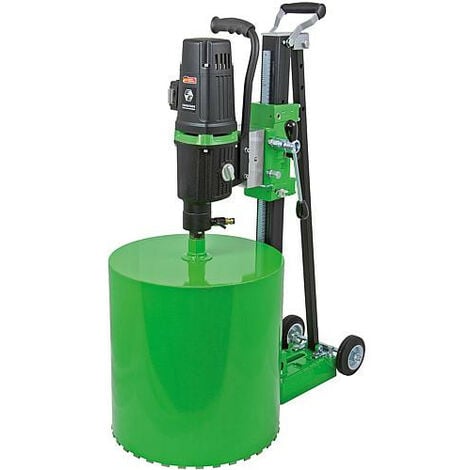

PLE 450B diamond drill unit

Features:
-Powerful 3300 W motor with high power reserves and long service life
-Electronic – smooth start, with overload protection and indication
-Fully aluminum housing – sturdy and durable
-3-speed oil transmission – for maximum lubrication in all working positions and adjusted torque-speed ratio for all diameters
-Mechanical safety clutch
-PUR construction site cable – strong for heavy duty use
-Universal tool mount – fixing the motor to the base without tools
-Integrated scale and hole center indicator on the drill base – precise drilling
-The base column can be adjusted to three positions (75°/60°/45°)
-Steel column – sturdy, stable, resistant to distortion
-Removable gear teat – easy maintenance
-Compact base with notches for quick installation
-Tool-free feed lever change – easy change of working position
-Removable wheel axle (accessory) – easy transport

Technical Specifications:
Rated power: 3300 W
Voltage: 230 V ~
No. of revolutions with load: 180/400/780 rpm
No-load speed: 300/650/1300 rpm
Drilling diameter: 71-452 mm
Shaft socket: 1¼” male
Column length: 960 mm
Useful: 620 mm
Weight: 35.8 kg
Code no.: 0373B000
Supplied: PLD 450.2 + PLB 450 without drills
